M series Integrated machine

Basic parameters screen size:65 inches、75 inches、85 inches


Tel : 400-772-9685

Let's start talking

Welcome to contact us for product consultation.

Basic parameters
screen size 65 inches 75 inches 85 inches 86 inches 98 inches 100 inches

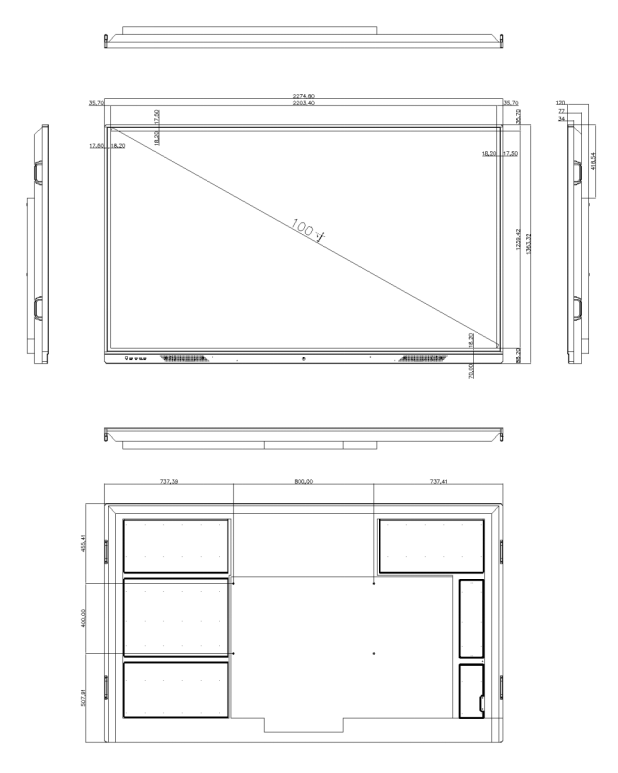

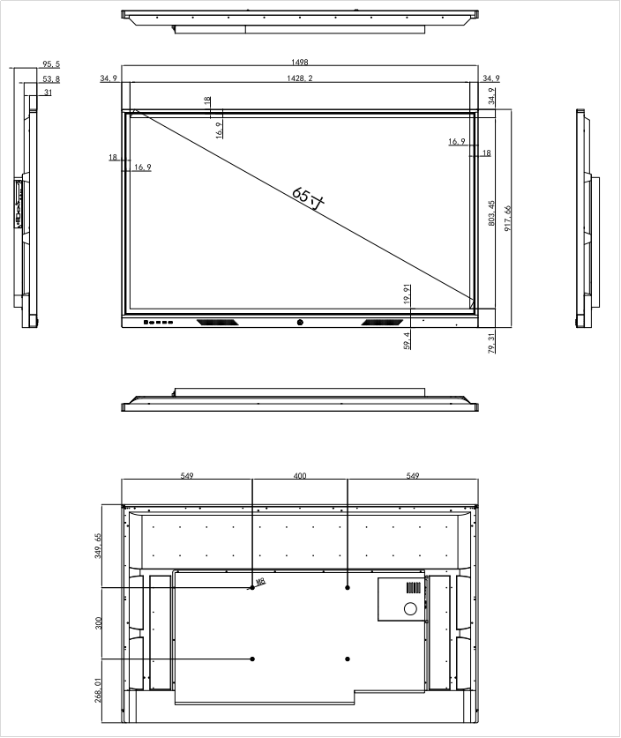

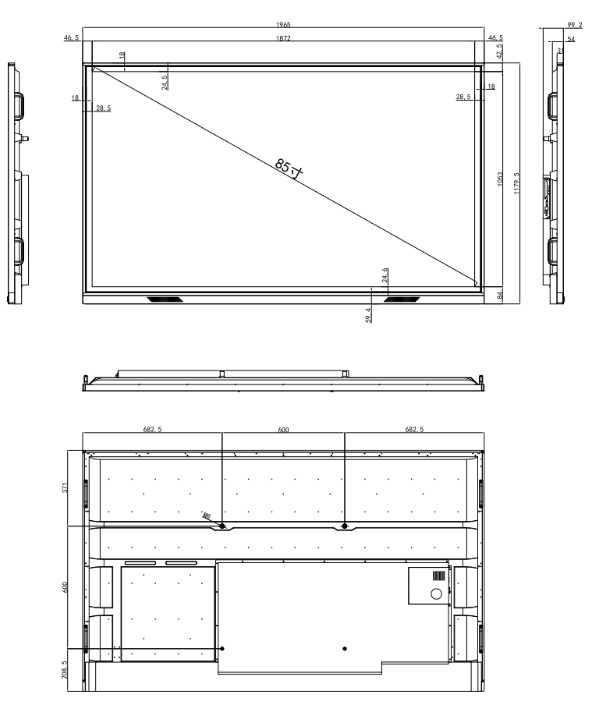

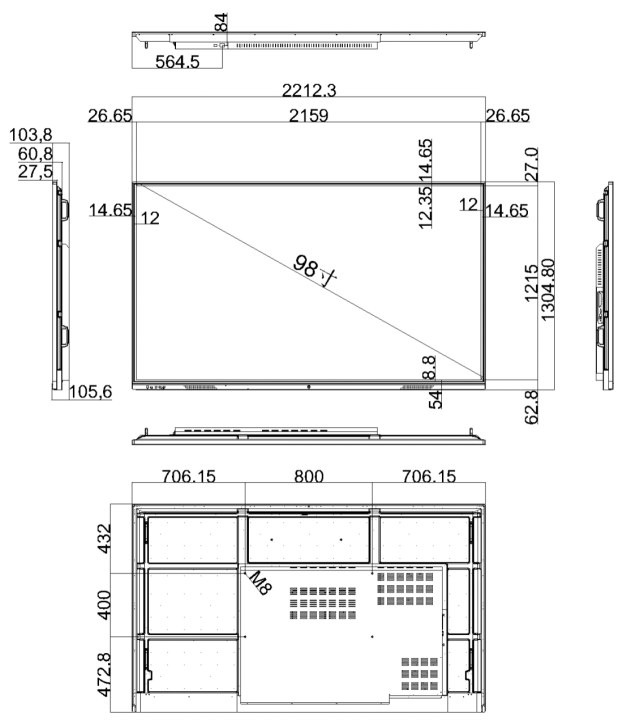

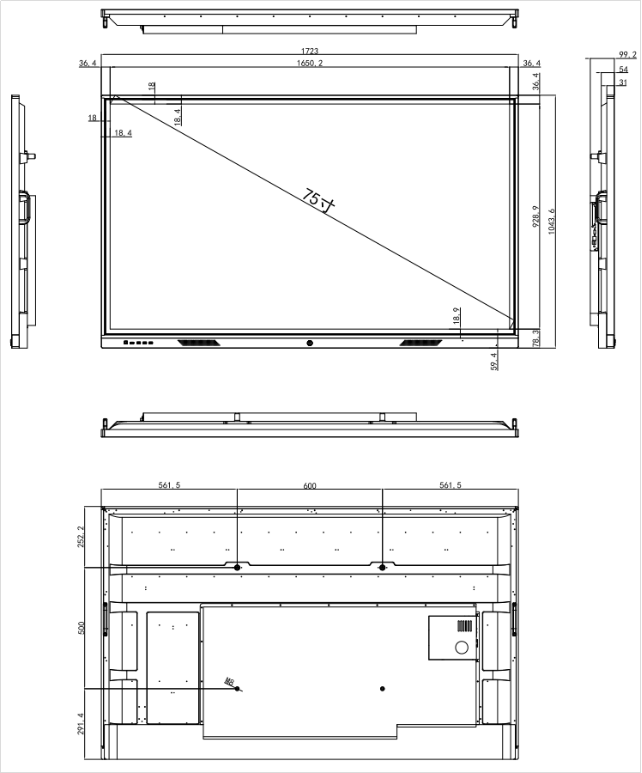

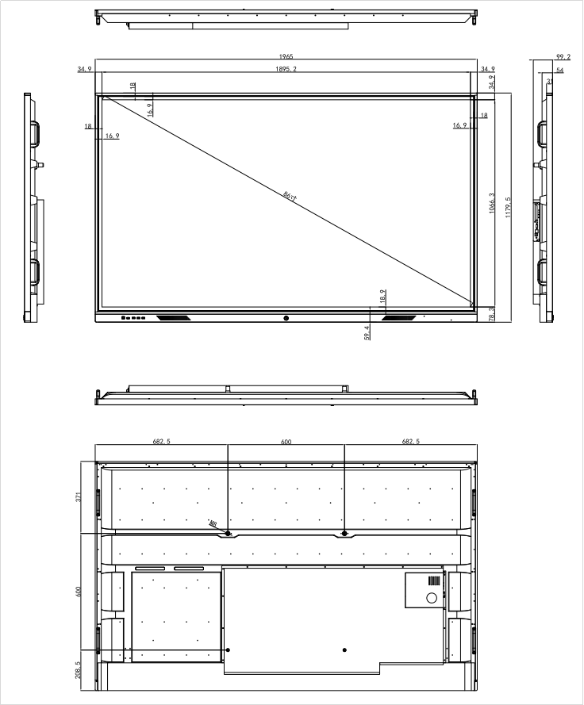

Bare machine size mm 1498x918x96 1723x1044x99 1965x1180x99 1965x1180x99 2212x1305x106 2275x1363x120
Packing size mm 1660x1065x225 1875x1185x225 2115x1325x225 2115x1325x225 2435x1490x275 2435x1490x275
Net weight KG 45 58.5 77 77 92 107
Gross weight KG 59 73.5 95 95 125 141
Wall mount size mm L770*H205*T35 L990*H215*T40 L990*H220*T42 (maximum thickness 45mm)
VESA hole size H400*V300mm H600*V500mm H600*V600mm H800*V400mm
Wall-mounted screw specifications M8 x L25 x 4 pcs

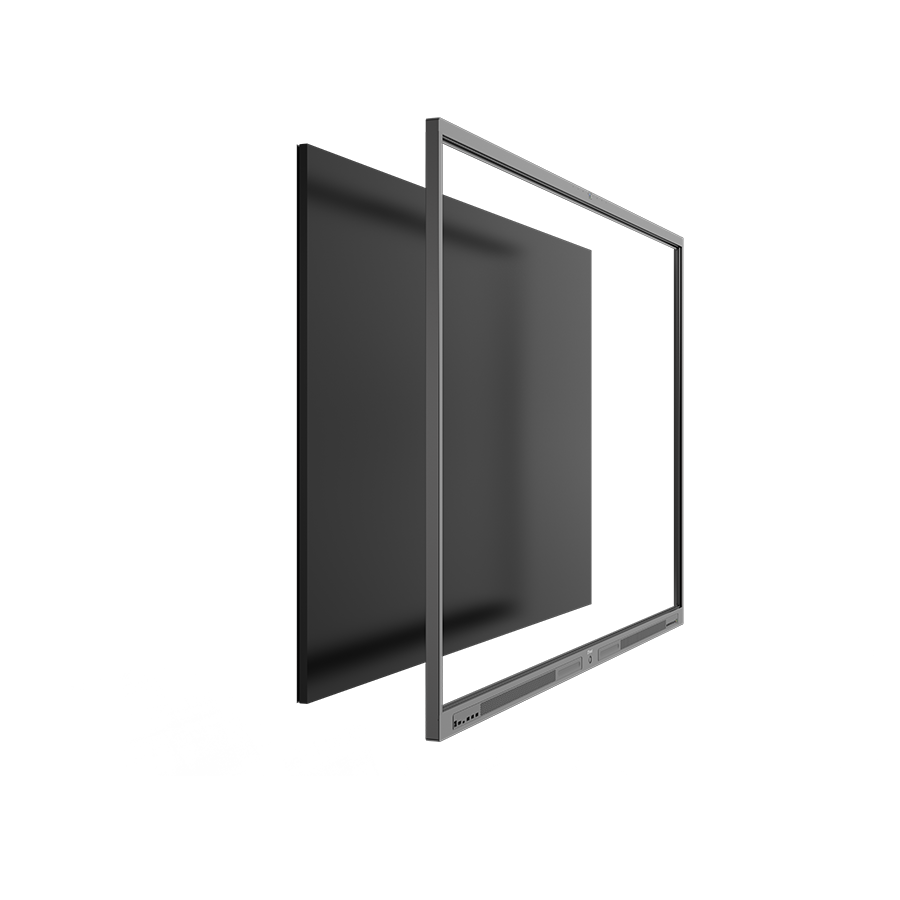

Shell material Aluminum alloy face frame, aluminum back plate, hardware back cover
Shell color The default front frame is black (silver gray is optional) and the back shell is black
Panel parameters
model HJ-TD65 HJ-TD75 HJ-TD85 HJ-TD86 HJ-TD98 HJ-TD100
Backlight type DLED
Display size mm 1428x804 1650x929 1872x1053 1895*1066 2159 x1215 2203x1240
Physical resolution 3840 * 2160
brightness 450cd/(Max)
Dynamic contrast 5000:1
Response time 8ms (Typ.)
Pixel pitch 0.5622 (H) x 0.5622 (V
Frame rate 120Hz
Viewing angle H178°V178°
screen ratio 16:9
Color saturation 68%
Display color 10Bit, 16.7M
Refresh rate 60Hz
Backlight life 50000h
Android configuration
Option One
main chip T972
System properties system version Android 9.0
CPU Quad-Core A55 1.9GHz
GPU Mali-G31 MP2 800 MHz
DDR SIZE 2G Byte& 4G Byte
eMMC Flash 16G Byte& 32G Byte
OSD language Chinese and English

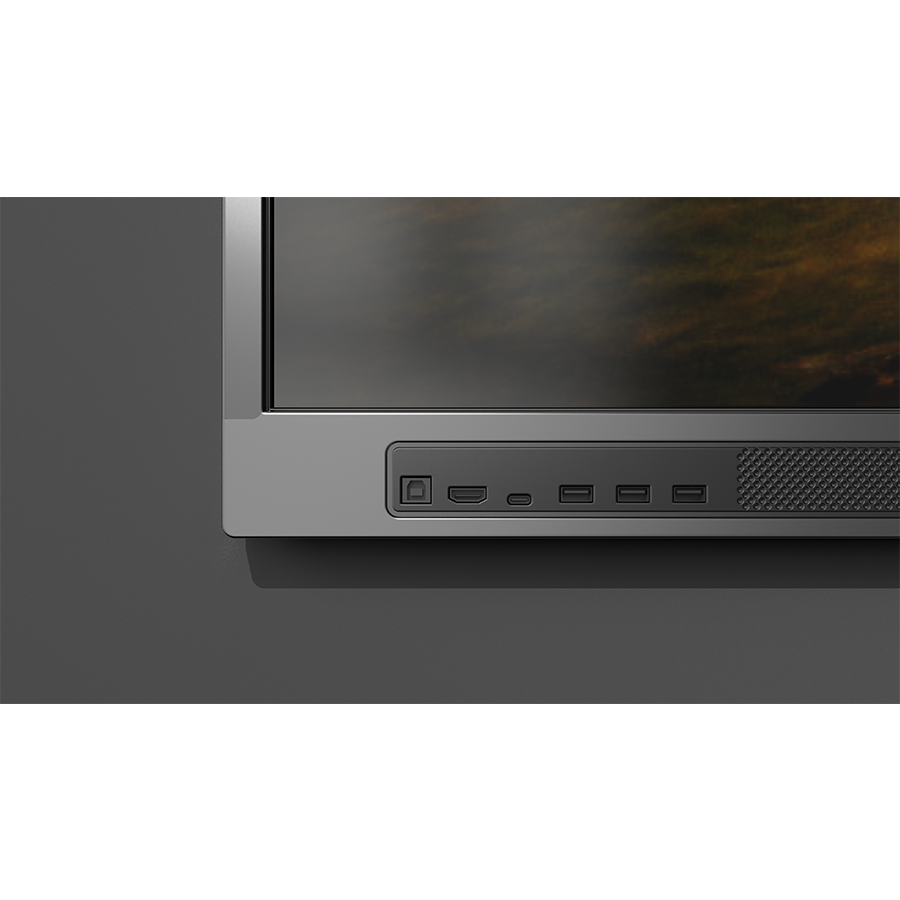

Front-end interface input Touch USB, HDMI input,USB2.0x2USB2.0x1
Side entry/exit interface DP in*1HDMI1,HDMI2,USB TOUCHx1USB2.0USB2.0SD卡,USB2.0
Bottom in/out interface RS232,Line out ,RJ45 in,PC AUDIO,VGA IN ,COAX OUT,AV IN,YPBPR IN,RF IN
Option Two
main chip Hi3751 V810
System properties system version Android 8.0
CPU Dual-core A73 and dual-core A53 1.5GHz
GPU Quad-core MaliG51
DDR SIZE 4G Byte
eMMC Flash 32G Byte
OSD language multi-lingual
Front-end interface input USB 3.0OPS USB 3.0OPS HDMI 2.0Android USB2.0
Side entry/exit interface USB2.0,RJ45*2,Earphone RS232,HDMI(ARC),HDMI,Touch USB,USB3.0*2
Bottom in/out interface MIC In,COAX
Option Three
main chip Hi3751 V811
System properties system version Android 8.0
CPU Dual-core A73 and dual-core A53 1.5GHz
GPU Quad-core MaliG51
DDR SIZE 4G Byte
eMMC Flash 32G Byte
OSD language multi-lingual
Front-end interface input USB TOUCH*1HDMI IN*1Type-c*1USB 3.0*1USB 3.0*2
Side entry/exit interface USB2.0*1USB3.0*1Type-C *1DP*1(Optional)TOUCH USB*3HDMI in 2.0*2
Bottom in/out interface RJ45IN*1RJ45 OUT*1HDMI OUT*1SPDIF*1AV IN*1YPBPR IN*1
Earphone*1
MIC*1VGA audio*1VGA IN*1TOUCH USB*1RS232*1
Option Four
main chip MTK 5680
System properties system version Android 9.0
CPU A73*4
GPU Mail-G71-MP3
DDR SIZE 4GB
eMMC Flash 32GB
OSD language multi-lingual
Front-end interface input USB TOUCH*1HDMI IN*1Type-c*1USB 3.0*1USB 3.0*2
Side entry/exit interface USB2.0*1USB3.0*1Type-C *1DP*1(Optional)TOUCH USB*3HDMI in 2.0*2
Bottom in/out interface RJ45IN*1RJ45 OUT*1HDMI OUT*1SPDIF*1AV IN*1YPBPR IN*1
Earphone*1
MIC*1VGA audio*1VGA IN*1TOUCH USB*1RS232*1
Option Five
main chip A311D2
System properties system version Android 11.0
CPU A73*4 + A53*4 (4 Core2.28Ghz
GPU G52*8(8 Core)
DDR SIZE Default 4G, can be expanded to 8G
eMMC Flash Default 32Gcan be expanded to  128G
OSD language multi-lingual
Front-end interface input USB TOUCH*1HDMI IN*1USB 2.0*1USB 3.0*2
Side entry/exit interface DP IN,HDMI In*2,USB3.0 TYPE B,HDMI OUT,Type-C,MIC,USB2.0,OTG,USB2.0,USB3.0
Bottom in/out interface RJ45 INRJ45 OUTEarphone/Line Out&CoaxCOAX OUTRS232PC Audio INVGA IN
sound
Speaker power 2×10W/12W(8Ω) THD+N<10%@2KHz
Frequency response 100Hz~15K Hz @±3dB(1KHz, -12dB reference signal)
Speaker type Speaker, stereo
Radiation direction forward
Touch parameter
Touch technology Infrared/capacitive touch
Touch points 20 o'clock under Android, 40 o'clock under Windows
grass Tempered 4mm (physical tempered Mohs level 7 explosion-proof, anti-glare, etching requires special customization)
Glass transmittance 92%
Touch resolution 32768(W)×32768(D)
Touch accuracy ≤2mm
Response time 5ms
input method Finger or non-transparent object
Palm erase function YES
Output form Coordinate output
Theoretical clicks Unlimited times
Smallest touch Single point: Ø5mm; Multi point: Ø8mm
Light resistance Incandescent lamp (220V, 100W), the illuminance of sunlight from the vertical distance of 350mm or more reaches 90000Lux
Electrical performance Interface Type Type A USB male
Communication type USB2.0 full speed (12Mbps)
Power supply USB (USB powered)
voltage DC 5.0V±5%
Working current 300mA
Static level According to IEC61000-2-4 Class B contact discharge 4 KV, air discharge 8 KV
Packing List
remote control 1
power cable 1
Whiteboard pen 2
HDMI cable Optional
USB cable Optional
VGA cable /
manual 1
Warranty Card 1
Quick Operation Guide /
Certificate of conformity 1
Wall bracket Optional
Mobile stand Optional
CD 1
Pointer Optional
Size pen Optional
Use environment
Operating temperature 0~40
Storage temperature 20~60
Relative humidity ≤80%
Longest use time 18h/day
APPs and Basic Software
Installable apk Yes
Annotation software Yes
Picture freeze Yes
Background image customization Yes (Configurable)
Start screen animation Yes (Configurable)
Floating icon Yes (Configurable)
Separate the two modes, support synchronization Yes
Infinite writing board Yes
Adjust the size of objects on the board Annotations and images (vectorial)
Duplicate Elements on the Board Yes
Changeable color Yes (Background and Pen on Board)
Notes in the Android interface Yes (on a Moving Image)
Renovation of the Android interface Yes (Squared, Freehand)
QR generation Yes (Cloud)
Webpage opens Yes
Video playback Real 4k
stream media Yes, up to 4k (Youtube)
Mirroring EsharePRO: 4 Simultaneous Projections, own Hot Spot mode compatible with output transmission to internet (LAN) to devices. Android, iOS (direct Airplay), Chrome, Ubuntu Windows (2 Touch) and MAC O.S (2 Touch).   Requires EsharePro Professional Edition
Support to open Office files Yes
Open picture, video Yes
calendar Yes
Calculator Yes
Timer Yes
Integrated video management function Yes
app Store Yes
Power information
Input voltage Rated 100-240V, maximum 90-264V 50/60Hz
Maximum power 520W (in OPS state) 480 in other states
Drive screen voltage 5V/12V
Standby power 0.5W
switch Rocker type double pole switch
Part of the function
One key switch Android / PC independent switch
Mobile phone wireless projection Support
Computer wireless projection Support, need to be equipped with a screen projector to achieve
Dual-band launch hotspot Support (2.4G+5G hotspot)
Smart electronic whiteboard Support
Office Software Support
Screen recording, screenshot Support
Welcome template Support
Multi-type interface Support
One-click energy saving Without turning off the power of the whole machine, the backlight of the LCD screen can be turned off or turned on with one key to realize the power-saving function and the independent listening function.
Dual system Support (OPS complete machine is optional). OPS specifications: i3, i5, i7 optional
Soft central control Without any buttons, the screen touch central control can be called through gestures, which can realize the control of return, homepage, process termination, channel switching, annotation, brightness, volume, etc. under any signal channel
One-key lock screen Configure the remote control, in addition to the TV remote control function, the touch and device keys can be locked/unlocked with one key through the remote control.
Intelligent signal switching Plug in an external computer, automatically search for signals and prompt or automatically switch to ensure convenient use
Intelligent multimedia playback Can automatically identify TV-USB storage, prompt and switch to the TV board's own media playback
Anti-glare tempered glass Support, need to be customized
Remote video conference Support
Intelligent brightness adjustment The whole machine can sense and automatically adjust the screen brightness to achieve the best display effect in different lighting environments. Need hardware support
Open system Open Android system, free to install various APKs
Camera Optional

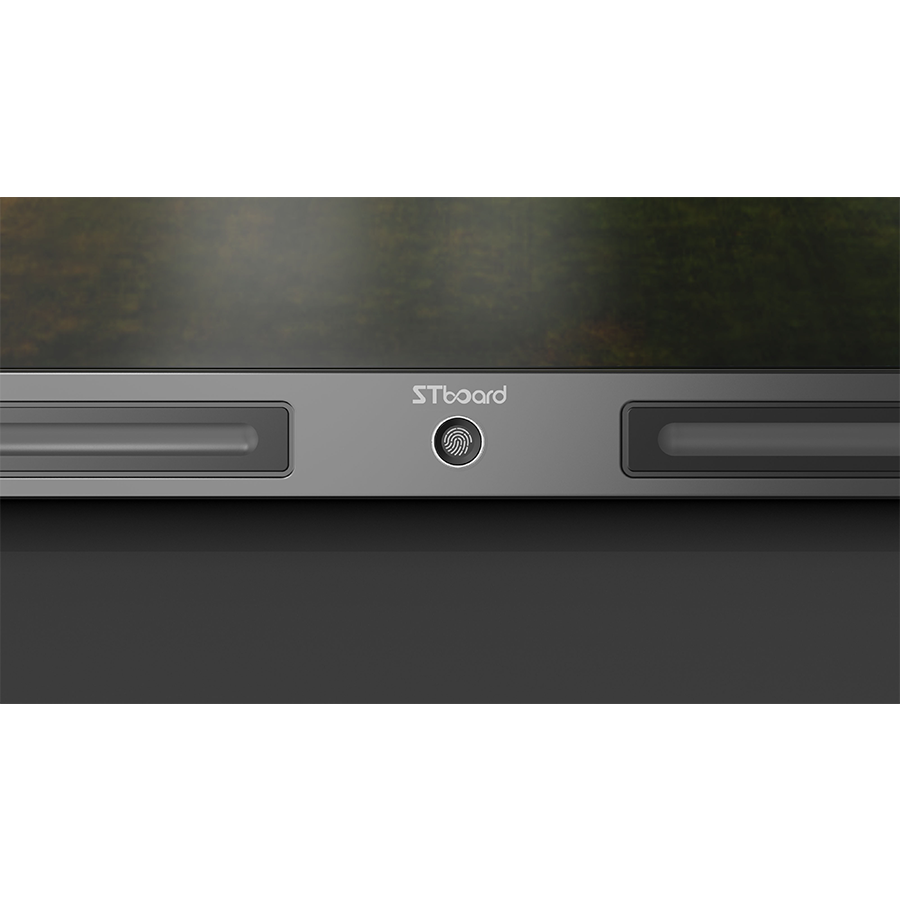

fingerprint Optional
Hearing aid Optional
Photosensitive Optional
Warranty
Warranty Years 5 Years
Certifications
RoHS, CE, Energy Star 8
